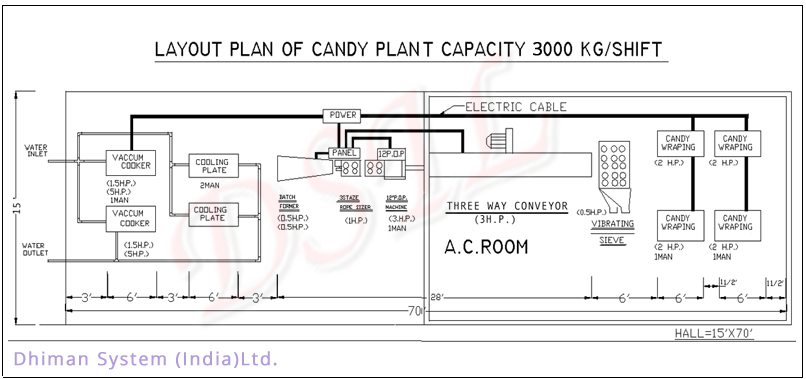

Candy Plant Capacity : 3000 Kg / Shift
INDIA+919814066007, +919872966007, dsilgroup@gmail.com
Vacuum Batch Cooker
Model DSCV0050
Capacity 1000 Kg./8Hrs
Drive 1.5+5=6HP
Batch Size 50Kg/Batch
Batch Time 20-25Minutes
Dimensions 1220x940x2000 mm
Weight Net 500 Kg
  Gross 900 Kg
Batch Cooling Plate
Model DSCP0050
Capacity 50 Kg./8Batch
Water Required 1-50Ltr/Hour
Cooling Area 1525x915x1828x1220
Dimensions 1930x965x914 mm
Weight Net 500 Kg
  Gross 750 Kg
Usage Both Sides/Single Side
Powder Filler
Model DSPB0500
Capacity As per forming Machine
  Capacity
Drive 0.5 HP
Dimensions 600x600x600 mm
Weight Net 50Kg, Gross 90Kg
Application Filling in Cnady /
  Bubble / / Ball Gum
Sugar Pulling machine
Model DSSP1525/1535/1550
Capacity 25/35/50 Kg.
Drive 2 / 3 / 5 HP
Dimensions 850 x 750 x 750 (25Kg)
Weight Net 360 Kgs.
  Gross 520 Kg (25c Kg)



Batch Former
Model DSFM0075
Capacity 75Kg/Batch
Drive 0.5+0.5=1HP
Rope Dia 20-60 mm
Heater 1 Kw
Dimensions 2300x570x1700 mm
Weight Net 450 Kg
  Gross 850 Kg
Rope Sizer 3 Stage
Model DSSO0003
Speed 60 Meter Rope/Minte
Drive 1HP
Sizing Wheel Input 33 Output 21mm
Dimensions 810x500x1320mm
Weight Net 8325 Kgd
  Gross 475 Kg
12" Plast-o-Plast/Spring Type
Model DSSR2000/DSST3000
Capacity 2000/3000 kg/8Hr.*
Drive 3HP+0.25 HP
Min/Max Size 10x10mm 60x40mm
Dimensions 1370x990x1425mm
Center Filling Powder and Semi Solid
Weight Net 850 Kg
  Gross 110 Kg

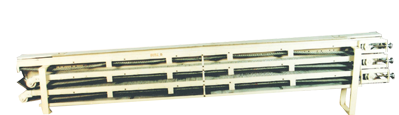

Three Way Cooling Conveyor
Model DSCT2000
Capacity 2000 Kg./8Hrs*
Blower 3HP
Wiremash 100, 200, 300 mm
Dimensions 1HP5180x550x940mm
Weight Net 650 Kg
  Gross 1100 Kg
Vibrating Sieve
Model DSCM1000
Application Sorting of Scrap
Drive 0.5 H.P.
Dimensions 1000x750x600mm
Weight Net 400Kg
  Gross450 Kg
Candy Wrapping Machine
Model DSCW0300/DSCW0450
Capacity 300/450 Pcs/Minute
Drive 2HP
Min. Size 16x12x5 mm
Max. Size 32x25x20 mm
Dimensions 1700x1575x1650 mm
Automation No Sweet No paper Machanism
Heat/Blower 1 Kw +0.5 HP (Optional)
Weight Net 1100 Kg
  Gross 1500 Kg
12" Spring Type Die
Center Filling Machine
Model DSCF6000
Capacity 6000Kg./8Hrs.
Drive 1HP
Dimensions 890x430x1445 mm
Weight Net 250 Kg
  Gross 450 Kg
