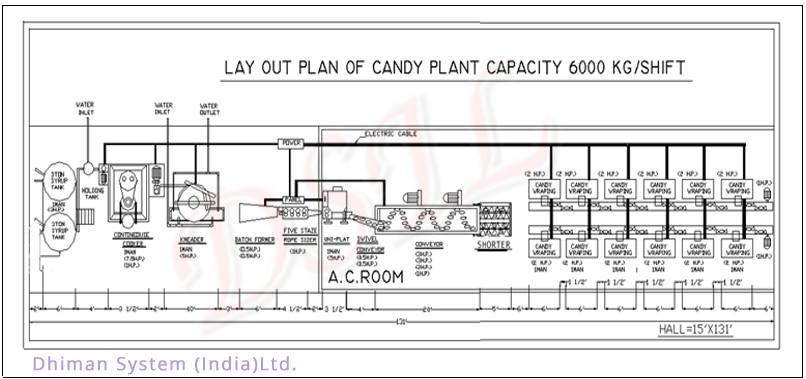

Candy Plant Capacity : 6000 Kg / Shift
INDIA+919814066007, +919872966007, dsilgroup@gmail.com
Syrup Tank
Model DSST1000
Capacity 1000 Ltrs./batch
Drive 2HP
Steam Cons. 100 Kg/Batch
Dimensions 1900x1500x2000mm
Weight Net. 500Kg
  Gross. 800 Kg


Continuous Batch Vacuum Cooker
Model DSCC0750
Capacity 6000 Kg/8Hrs.
Drive 3 + 7 HP
Batch Size Adjustable 10-75 Kg
Batch Time 5-30 Minutes
Dimensions 2700x1100x2100mm
Weight Net 2000 Kg
  Gross 2570 Kg
Sugar Batch Kneader
Model DSKR0050/DSKP5050
Capacity 50 Kg/Batch
Drive 5 HP
Water Cons. 5ltr./50 kg Mass
Dimensions 1880x1780x1550 mm
Side Plate Left 1750x880 mm
  Right 1000x880 mm
Weight

Net 1350 Kg.

  Gross1900Kg
Center Filling Machine
Model DSCF6000
Capacity 6000Kg./8Hrs.
Drive 1HP
Dimensions 890x430x1445 mm
Weight Net 250 Kg
  Gross 450 Kg



Batch Former
Model DSFM0090
Capacity 90 Kg/Batch
Drive 0.5+0.5=1HP
Rope Dia 20-60 mm
Heater 1Kw
Dimensions 2300x570x1700mm
Weight Net 450Kg
  Gross 850 Kg.
Rope Sizer 5 Stage
Model DSSO0005
Speed 110 Meter Rope/Minute
Drive 1 Hp
Sizing Wheel Input 41, Output 16 mm
Dimensions 1300 x 500 x1320mm
Weight Net 400 Kg
  Gross 600 Kg.
High Speed Candy Forming Machine
Model DSUP 6000
Capacity 6000 Kg./8Hrs*
Drive 7 Hp
Min Max Size 16x16mm\60x40mm
Center Filling Liquid, Silid & Powder
Other App. Gum Product Forming
Dimensions 1150x1100x1600 mm
Weight Net 950 Kg.
Gross 1300 Kg.
Three Way Cooling Conveyor
Model DSCT6000
Capacity 6000Kg/8Hrs.
Blower 4 HP
Drive 3 HP
Wiremesh 1000 mm width
Dimensions 6500x1200x1900mm
Weight Net 1800 Kg.
  Gross 2800 Kg
Spiral Sorter
Model DSSS0004
Application Sorting of Under
  Over Size Candies
Drive 0.5 HP
Number of Rollers according to width
  of output conveyor
Dimensions Depending on Rollers
Weight Depending of size
Sorter Thickness & Dia
Model DSSD0006
Capacity 6000 Kg/8Hrs.
Drive 0.5+0.5 Hp
Dimensions 1000x1100x550mm
Weight Net 500 Kg.
  Gross 750 Kg.
Die Carrier
Model DSDC0012
Max Height 1200 mm
Min Height Ground Level
Applications Lifting of Die
Dimensions 915x690x1600 mm
Weight Net 190 Kg.
  Gross 330 Kg
Candy Wrapping Machine
Model DSCW0300/DSCW0450
Capacity 300/450 Pcs/Minute
Drive 2HP
Min. Size 16x12x5 mm
Max. Size 32x25x20 mm
Dimensions 1700x1575x1650 mm
Automation No Sweet No paper Machanism
Heat/Blower 1 Kw +0.5 HP (Optional)
Weight Net 1100 Kg
  Gross 1500 Kg
